English Wheel

English wheel full size

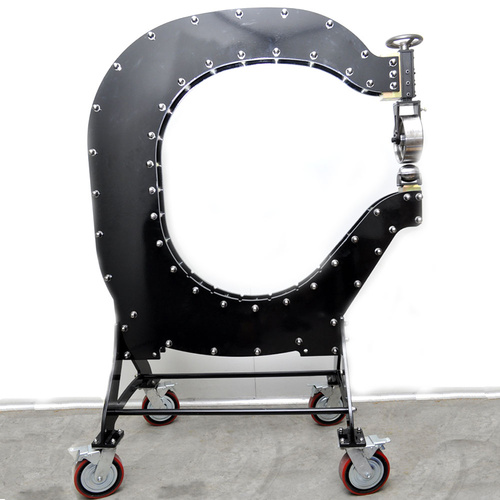

We designed this Wheeling machine to be comparable to a traditional full size cast machine. Flex is minimal and the feel and use of this machine is similar to a cast unit of the same size.
The frames are laser cut from 16mm high strength 350MPa steel and powder coated. All spacers are CNC machined and cadmium plated. The machine is fitted with 4 x HD 8" locking castor wheels.

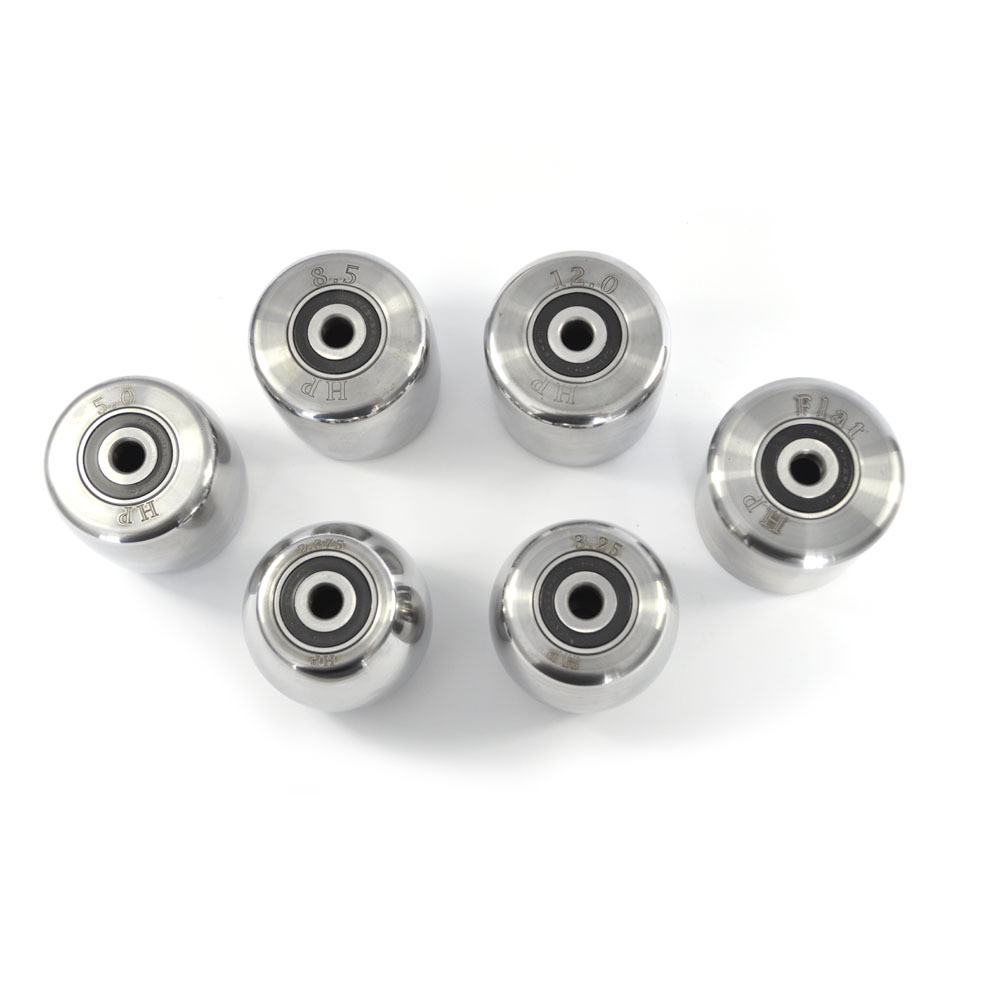

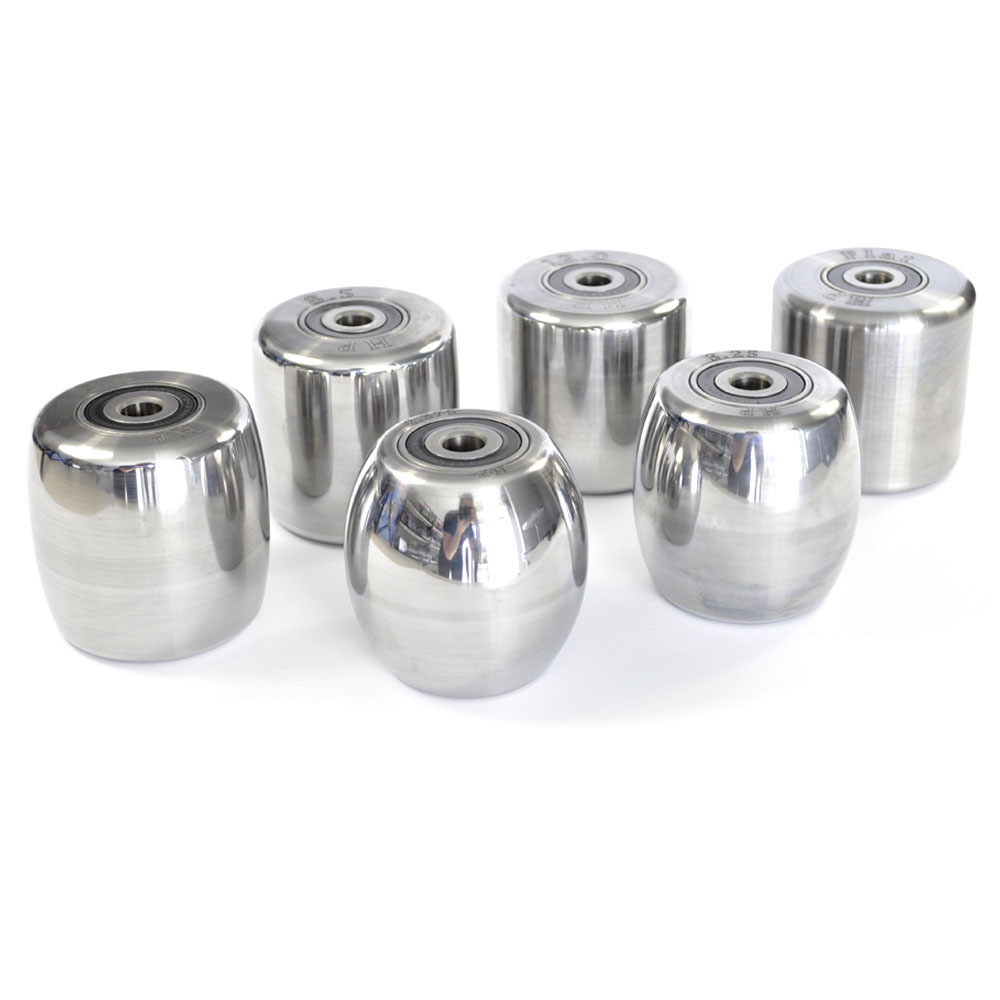

Wheel sets are the highest quality available. Each machine comes with a set of 6 lower wheels, either true radius or tracking centres.
The six wheels include: Flat, 12" radius, 8.5" radius, 5" radius, 3.25" radius and 2.375" radius. All the wheels are made from 4140, surface ground, heat treated and polished, guaranteed to run within 0.02mm.
Throat clearance is 1070mm
Working height of wheel centres is 1340mm
Overall height 1980mm
Overall depth 1400mm

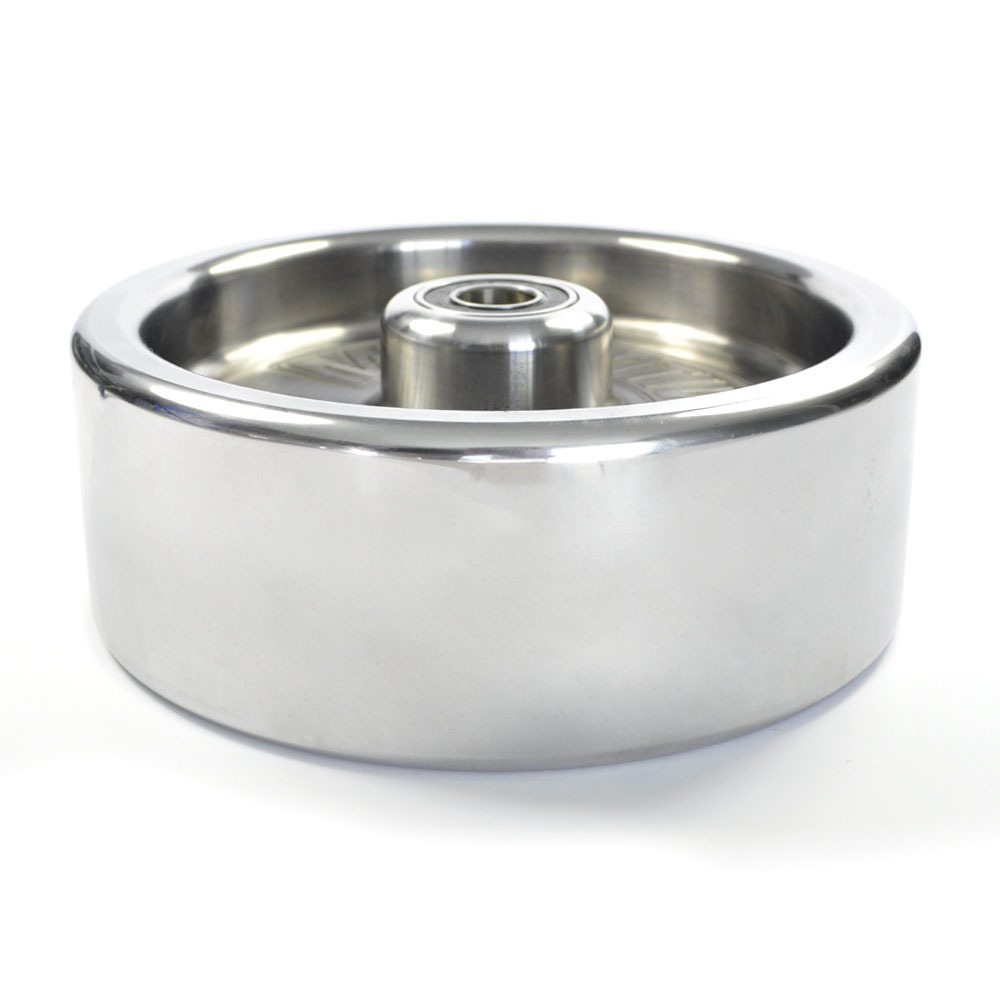

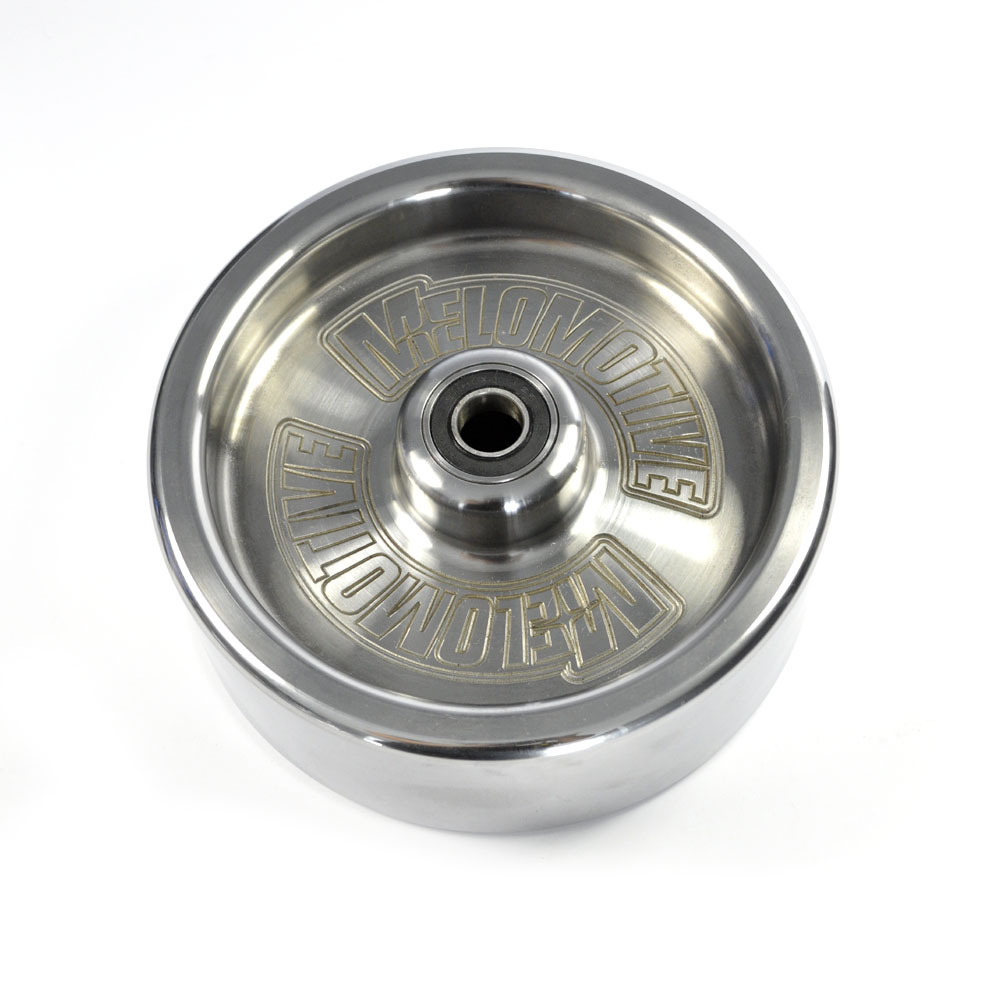

Upper wheel diameter 8 inches x 3 inches wide
Weight 380kgs.

PLEASE NOTE:  3 - 4 week lead time required for manufacture.
